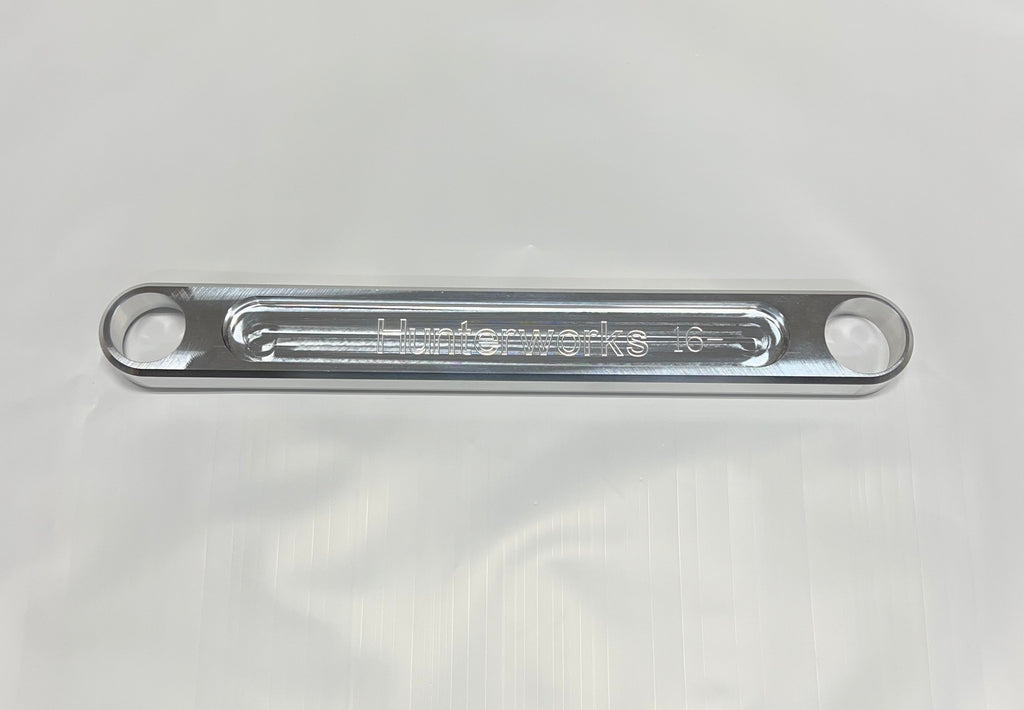

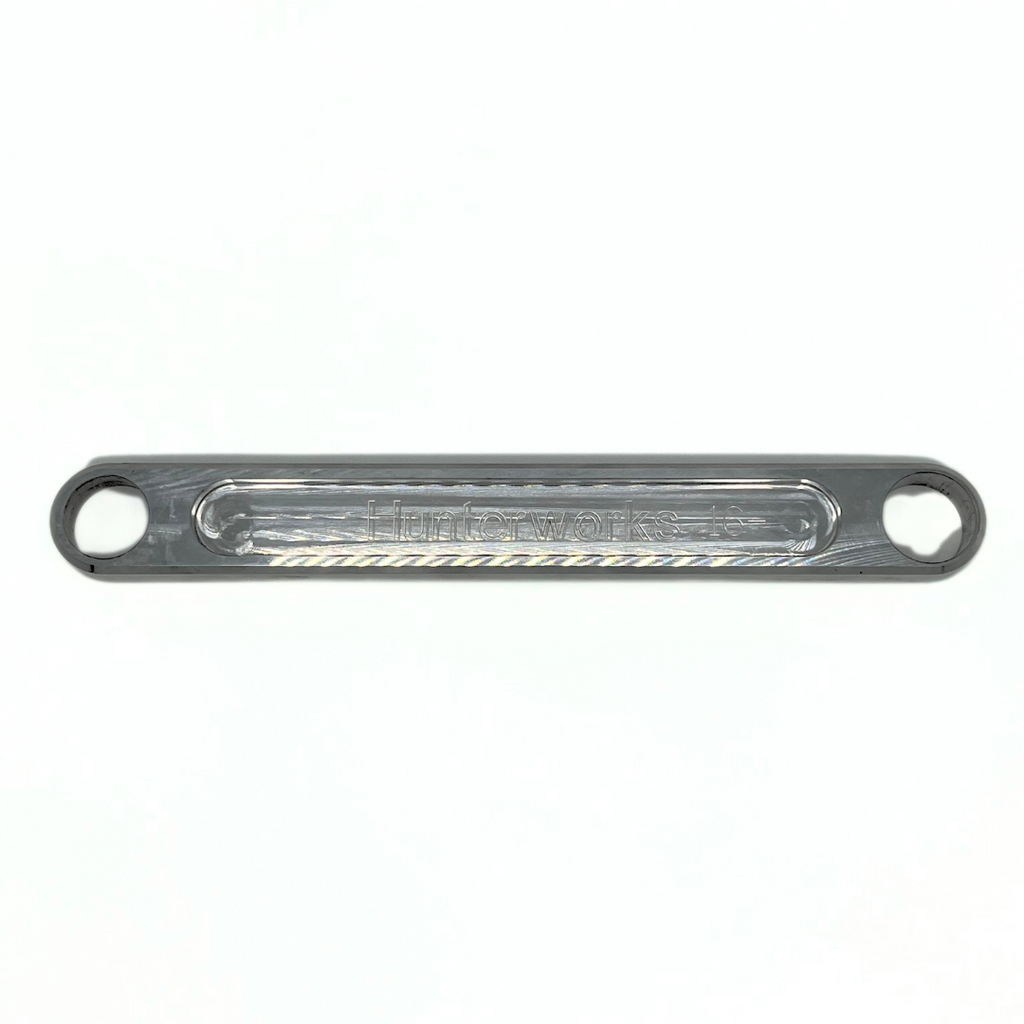

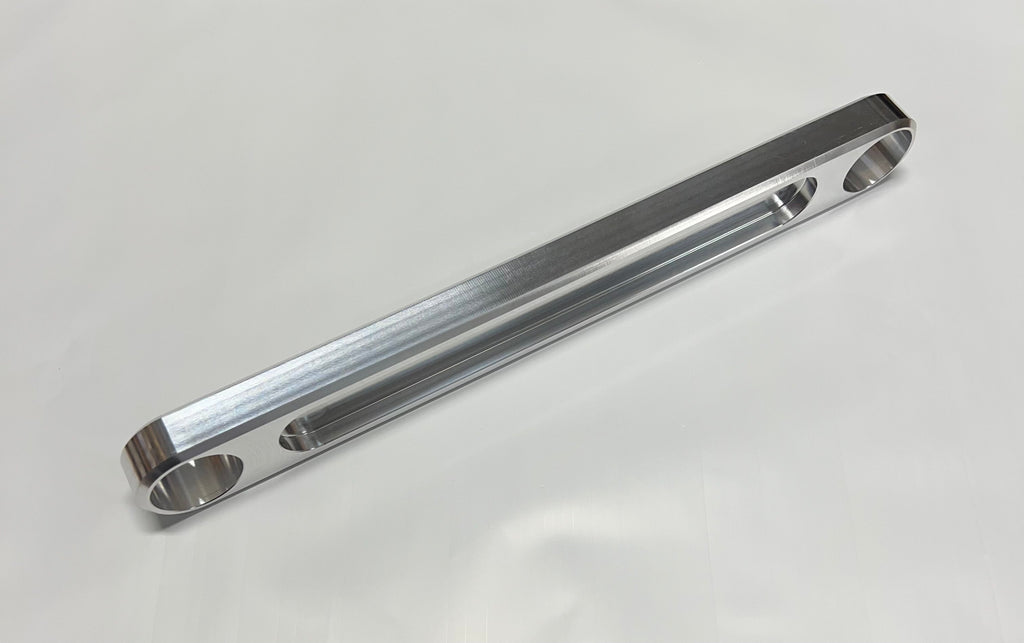

(Hunterworks Alignment Tool) 2017 Polaris Ranger XP 1000

Introducing the Hunterworks Alignment Tool for the 2017 Polaris Ranger XP 1000 — a precision-built, USA-made solution tailored for the three-seat and crew models. This tool directly addresses shaft spacing and alignment issues in the CVT clutch, delivering repeatable, trustworthy measurements you can rely on during maintenance, tuning, and belt changes.

What makes this tool unique

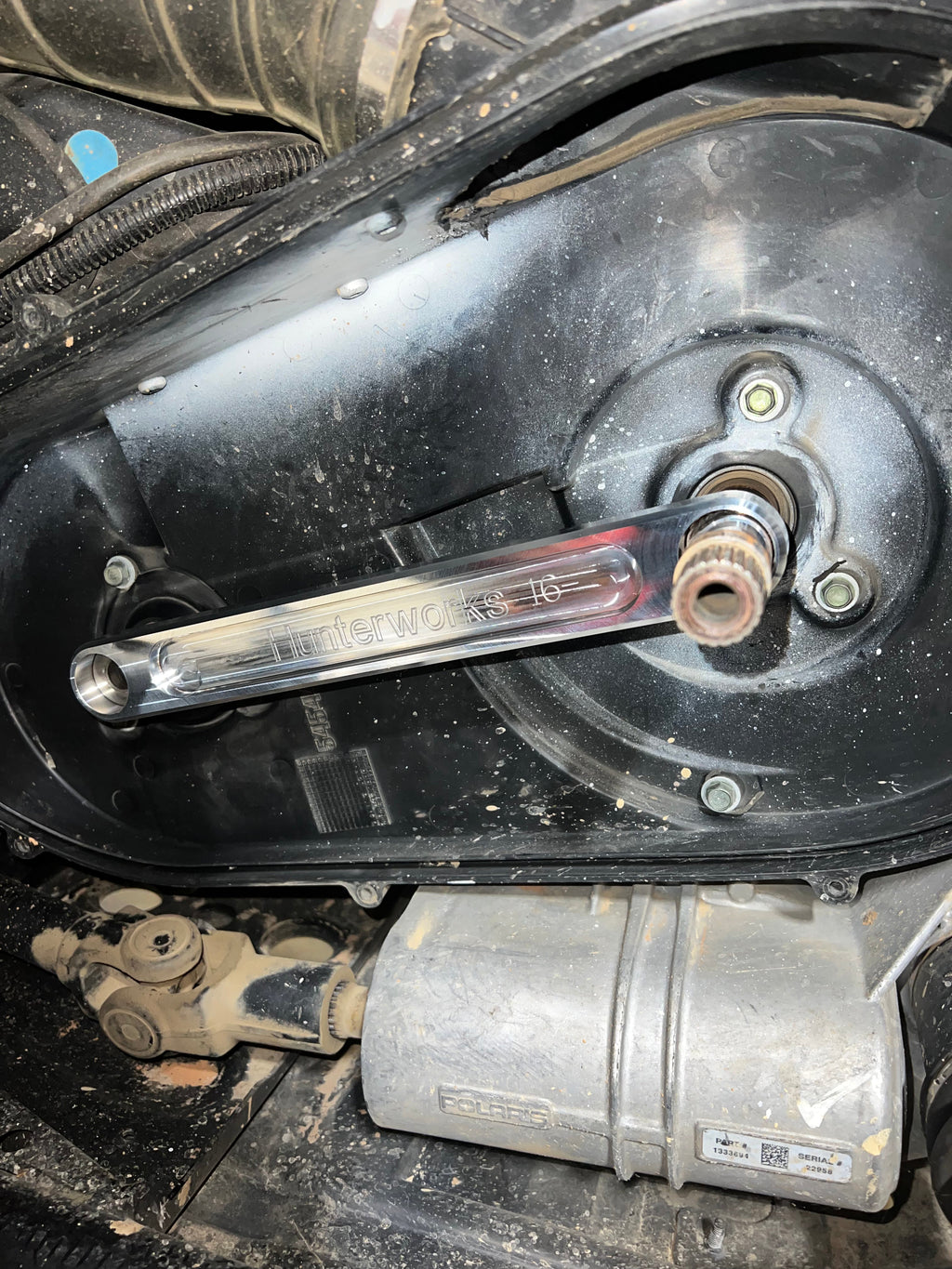

• Dual-shaft reference: The alignment tool sits on both the crankshaft and the transmission shaft of the CVT clutch, creating a stable reference plane that minimizes guesswork and enhances measurement accuracy.
• Exact fit for 2017 Ranger XP 1000: Designed specifically for the 2017 Polaris Ranger XP 1000, including the three-seat and Crew configurations, ensuring proper engagement with the drivetrain geometry.
• USA-made craftsmanship: Built to demanding standards in the United States, reflecting Hunterworks’ commitment to durability and consistent results over many service intervals.
• SDI Lock Plates compatible: Engineered to work seamlessly with SDI Lock Plates, simplifying installation and verification steps without needing ad hoc adaptations.
• Targeted problem solving: Corrects common shaft spacing and alignment problems that can lead to mis-tracking belts, increased wear, and reduced clutch performance in rugged conditions.

Why proper alignment matters for your Polaris Ranger XP 1000

When the CVT clutch isn’t perfectly aligned, belt tracking can wander, resulting in uneven wear, belt slippage, and reduced drivetrain efficiency. The Hunterworks Alignment Tool provides a reliable, repeatable method to verify and set spacing between the crankshaft and transmission shaft, helping you:

• Improve belt life by promoting even wear and stable tracking
• Reduce clutch chatter and vibration during acceleration
• Restore smooth, predictable performance in off-road conditions
• streamline maintenance workflows when installing SDI Lock Plates

Ideal customers and use cases

• Off-road enthusiasts performing routine maintenance or upgrades on the 2017 Polaris Ranger XP 1000 (Three seat and Crew)
• Professional technicians and small shops servicing CVT clutches and SDI Lock Plate installations
• DIY mechanics who want a dependable, American-made tool that delivers consistent, measurable results

Practical tips for getting the most out of your alignment tool

• Use it as a standard step in any CVT clutch service, belt change, or SDI Lock Plate installation to establish a reliable baseline.
• Pair it with careful verification after reassembly to confirm that the reference plane remains true through torque and vibration cycles.
• Follow Polaris service guidance for clamping and mounting procedures to preserve shaft integrity and measurement accuracy.

In short, the Hunterworks Alignment Tool is not just a gauge—it's a carefully engineered companion for Polaris Ranger XP 1000 owners who demand accurate alignment, durable American manufacturing, and compatibility with the SDI Lock Plate workflow. If you’re serious about belt longevity, clutch performance, and precise drivetrain alignment, this tool is built to deliver reliable results project-after-project.
