(Hunterworks Alignment Tool) 2016-2020 Polaris RZR Turbo

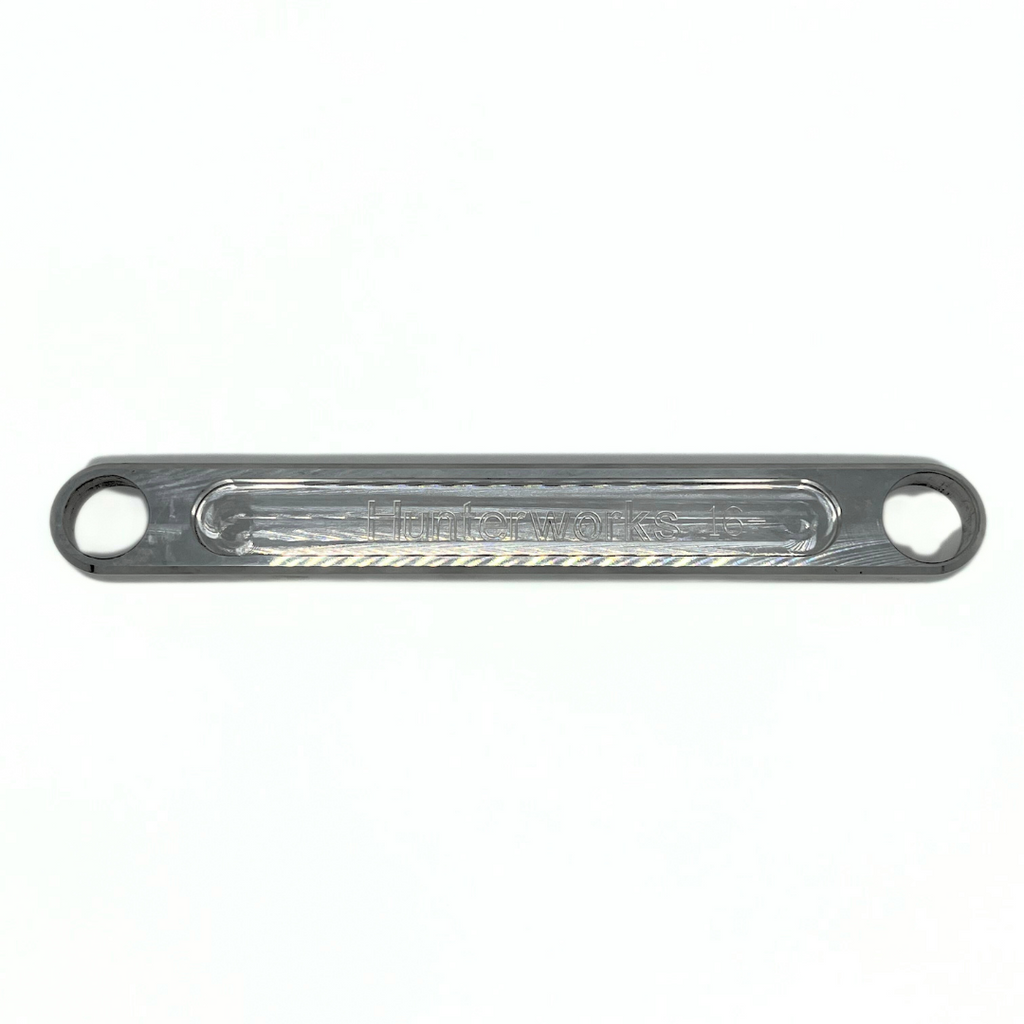

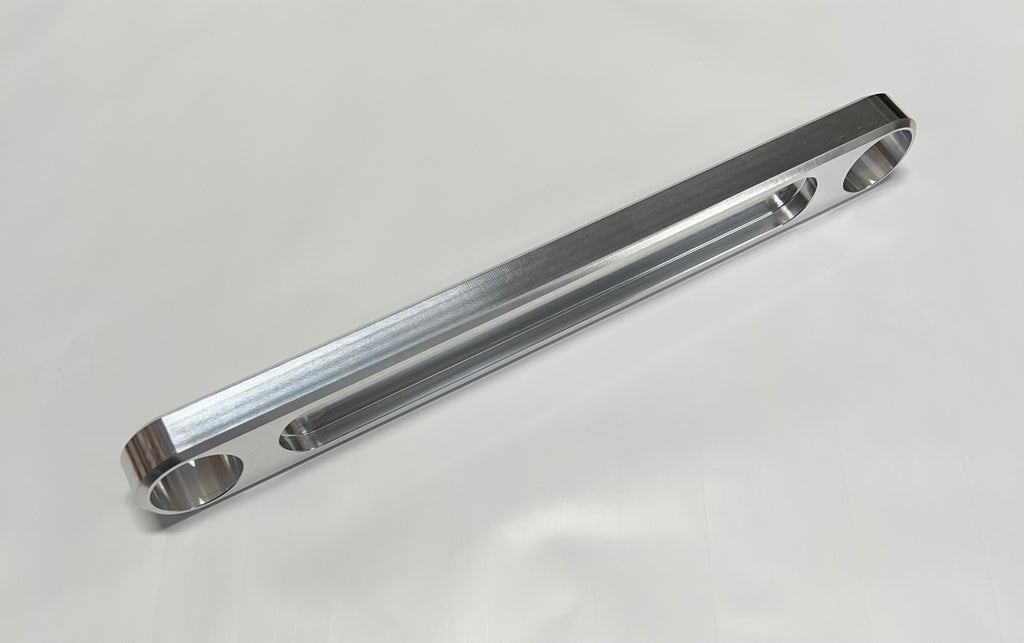

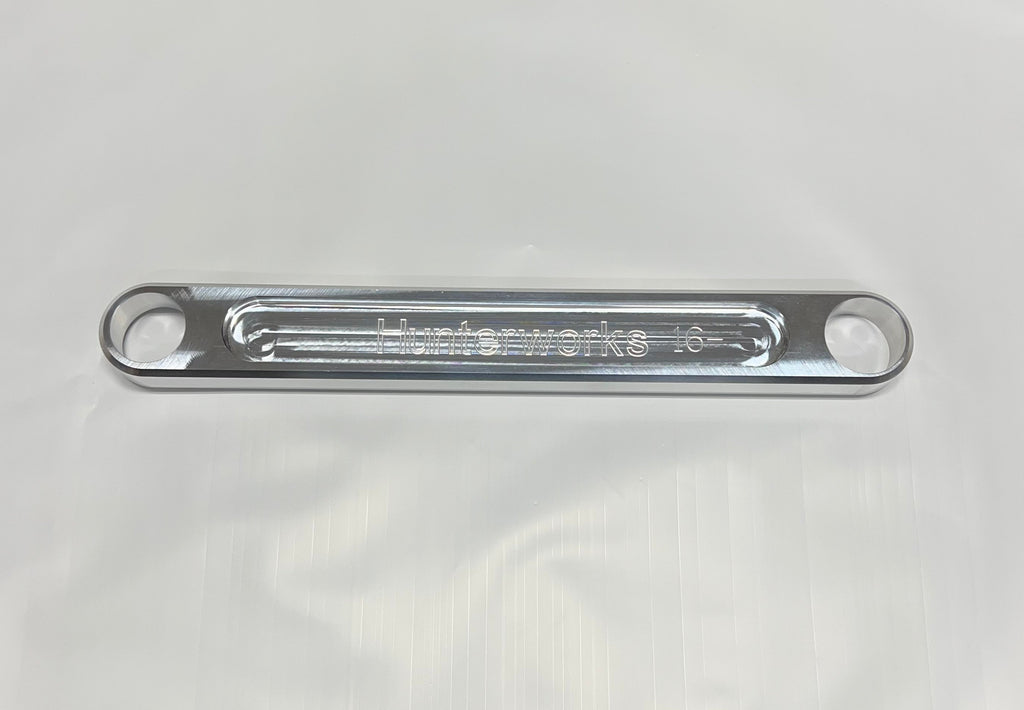

The Hunterworks Alignment Tool is a precision-grade diagnostic and alignment solution built specifically for 2016-2020 Polaris Turbo RZR models. Made in the USA, this tool mounts on the crankshaft and the CVT clutch transmission shaft to deliver exact shaft spacing and true alignment, addressing the root causes of belt mis-tracking, vibrations, and accelerated wear that can plague high-performance RZRs.

Why this tool stands out

• Targeted fitment: designed for 2016-2020 Polaris Turbo RZR models (all configurations).
• Explicit compatibility notes: not compatible with Turbo Pro models, but confirmed to work on Polaris RS1 CAT1620T.
• Made in the USA: engineering and manufacturing pride you can trust for durability and consistency.
• Direct measurement points: sits on the crankshaft and CVT clutch transmission shaft to provide a precise reference for spacing and alignment.
• Designed by top engineers: built to deliver a reliable, repeatable alignment reference that technicians can depend on.
• Ready-to-learn: includes an Explanation Video (must watch) and a How-To-Use Video to guide setup and verification.

What problems it solves

Misaligned shafts in a CVT drivetrain can cause uneven belt wear, belt tracking issues, and vibration that reduces performance and shortens component life. The Hunterworks Alignment Tool creates a definitive alignment reference, helping you:

• Achieve proper belt tracking and pulley alignment, improving clutch engagement and power transfer.
• Extend belt life by reducing abnormal wear patterns caused by shaft spacing inconsistencies.
• Cut downtime in maintenance by providing a clear, repeatable method to verify alignment before and after service.
• Standardize repairs or upgrades across fleets or shop projects with a dependable measurement baseline.

Who should consider this tool

Ideal for Polaris RZR enthusiasts who regularly service or upgrade their Turbo models, race teams dialing in performance, and workshop technicians aiming for precise, repeatable alignment checks during clutch servicing, belt changes, or after drivetrain modifications.

How to use (overview)

1. Power down and access the CVT area of the Turbo RZR.

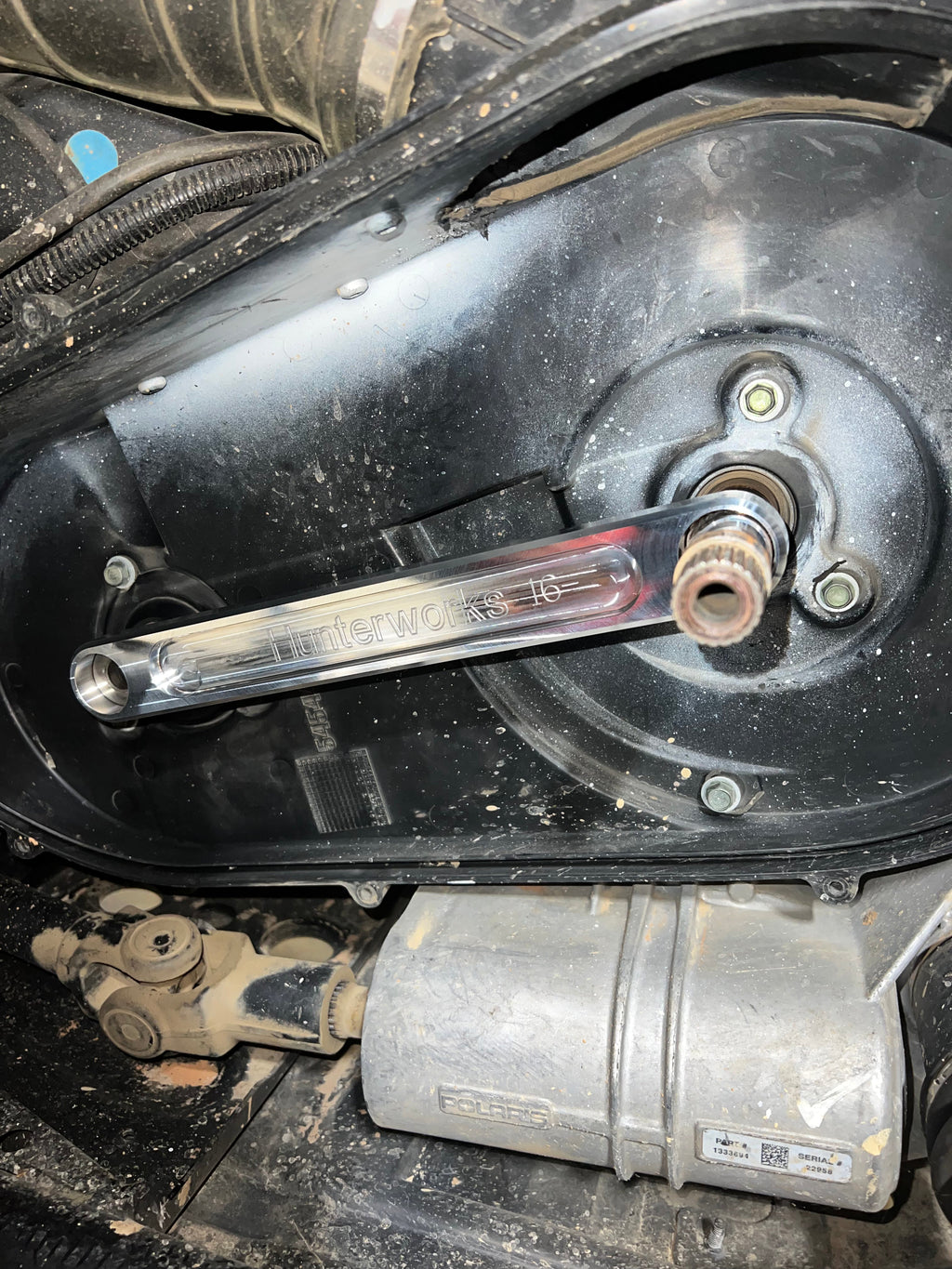

2. Place the tool so it seats on the crankshaft and CVT transmission shaft, establishing a fixed reference for spacing.
3. Follow the included How-To-Use Video to verify proper alignment and spacing across both shafts.
4. Consult the Explanation Video for context on why alignment matters and how to interpret the measurement results.
5. Proceed with any required adjustments, reseat the system, and recheck to confirm consistent alignment.

Usage tips and practical insights

• Watch both videos before beginning work to understand measurement principles and the impact of misalignment on performance.
• Use the tool as a pre-service check when installing new belts, pulleys, or CVT components to ensure a clean baseline.
• Store the tool in its case after use to protect the precision surfaces from damage or contaminants.
• Pair with standard maintenance practices to maximize belt life and smooth drivetrain operation.

Upgrade your Polaris Turbo RZR maintenance with the Hunterworks Alignment Tool for precise, reliable shaft spacing and alignment. This purpose-built accessory brings engineering-grade accuracy to your shop or garage, helping you get the most from your drivetrain while avoiding the common pitfalls of misalignment.
